全國服務熱線MHBHX-MK懸臂模塊傳感器精度高、安裝簡便、性能穩定，具有自動調心及防傾覆功能。適用于平臺秤、料斗秤、罐秤、汽車衡等工業自動化測量控制系統。
額定載荷 Rated load | 300kg～10t |
靈敏度 Output sensitivity | 2.0±0.05 mV/V |
非線性 Non-linearity | ±0.05 %F?S |
滯后誤差 Lag error | ±0.05 %F?S |
重復性誤差 Repeatability | ±0.03 %F?S |
蠕變 Creep | ±0.03 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.05 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.05 %F?S/10℃ |
輸入電阻 Input resistance | 380±30Ω |
輸出電阻 Input resistance | 350±5Ω |

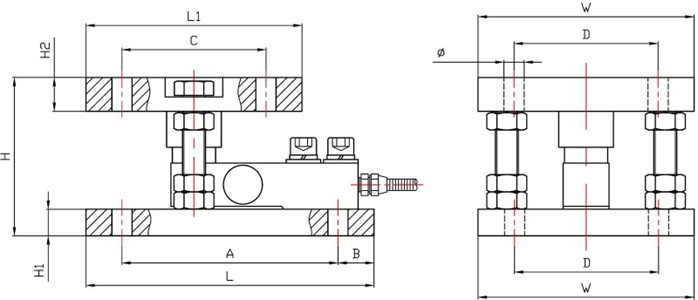

量程 | L | W | H | L1 | H1 | H2 | A | B | C | D | ? |
300kg～2t | 200 | 150 | 110 | 150 | 18.5 | 23.5 | 150 | 25 | 100 | 100 | 2X4-?14 |
3t～5t | 232 | 150 | 128 | 150 | 18.5 | 23.5 | 182 | 25 | 100 | 100 | 2X4-?17 |
6t～10t | 310 | 180 | 174 | 210 | 28.5 | 38 | 250 | 30 | 150 | 120 | 2X4-?27 |
