全國服務熱線MHBLT筒式拉力傳感器采用筒式結構，拉、壓均可使用。性能穩定。適用于各種料斗秤、電子衡器等工業自動化測量控制系統。
額定載荷 Rated load | 10t～300t |
靈敏度 Output sensitivity | 1.5±0.05 mV/V |
非線性 Non-linearity | ±0.3～±0.5 %F?S |
滯后誤差 Lag error | ±0.3 %F?S |
重復性誤差 Repeatability | ±0.3 %F?S |
蠕變 Creep | ±0.3 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.1 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.1 %F?S/10℃ |
輸入電阻 Input resistance | 750±30Ω |
輸出電阻 Input resistance | 700±5Ω |

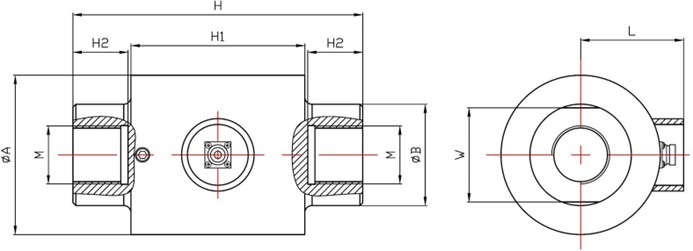

量程 | ?A | H | H1 | H2 | ?B | W | M | L |
10t～30t | ?110 | 200 | 120 | 40 | ?70 | 65 | M40X3 | 75 |
50t～100t | ?155 | 324 | 200 | 72 | ?115 | 104 | M72X4 | 98 |
150t～200t | ?200 | 420 | 240 | 100 | ?166 | 154 | M110X6 | 125 |
250t～300t | ?238 | 500 | 280 | 120 | ?190 | 180 | M130X6 | 144 |
